What is MIPS Helmet Technology and how it can save your life!

There can’t be many motorcyclists who go out for a ride expecting to crash, but that’s exactly what pro skiers and competition cyclists do; they try to avoid it, of course, but they know there’s a very good chance they’ll fall. They were the early adopters of MIPS…

What does MIPS stand for?

MIPS, or Multi-directional Impact Protection System, is basically a thin insert between a helmet’s skull cap and expanded polystyrene shell. Hans von Holst, a Swedish neurosurgeon, and Peter Halldin, a researcher at the Swedish Royal Institute of Technology developed the technology to reduce the risk of rotational motion trauma to the brain.

What does MIPS do?

By adding a MIPS layer to a helmet, the lid itself can shift between 10 and 15mm around the head in any direction upon impact, which reduces the rotational forces transferred to the brain in those first 5-10 milliseconds.

The MIPS layer (shown in yellow) allows the helmet to rotate around your head in a crash

Why does rotational motion trauma matter?

Any impact to the brain is potentially fatal or life-changing. Helmets are designed to reduce the force transmitted to the head in the same way that your skull has evolved to protect your brain – a hard outer shell to spread the load over a greater area, and a soft interior to dampen energy.

In the head, three thin membranes (meninges), and the cerebrospinal fluid cushion the delicate brain. That fluid also allows the brain to shift and rotate slightly, something the typical motorcycle helmet doesn’t let your head do.

A straight impact to the head, while wearing a helmet, will transfer the energy along the same axis, but in a crash you’re likely to strike the ground at an angle… at that first impact your helmet could be twisted or rolled, and it’s MIPS that is claimed to reduce the amount of this directional force that gets to the head, helping the cerebrospinal fluid protect the brain from damage that could lead to concussion or worse.

According to the Alzheimer’s Association, research over the past 30 years has shown that adults with a history of moderate traumatic brain injury had a 2.3 times greater risk of developing Alzheimers than seniors with no history of head injury. Those who had previously suffered a severe traumatic injury had a 4.5 times greater risk.

A Swedish study found that, during the first year after a head injury, the risk of dementia was approximately four to six times greater. This risk quickly reduced over time, but never returned to normal. From the data, which started with 3.3million people, the odds of dementia occurring 30years after a brain injury were determined to be 25% higher.

Testing on an inclined anvil – to simulate a crash as the rider is thrown from the bike onto the road – has shown MIPS to be effective

Does MIPS make a difference to the fit of my helmet?

Adding a MIPS layer to a helmet isn’t a case of simply dropping it in yourself. If a helmet manufacturer wants to install this technology, it work with MIPS to design it in during manufacture.

There are a few different solutions available, depending on the design of the lid, but it’s very thin and weighs between 25 and 45grams.

It will of course add cost to the helmet, depending on the design and the engineering that needs to go into the implementation, but it’ll likely be anywhere between £20 and £50 at retail for motorcycle products.

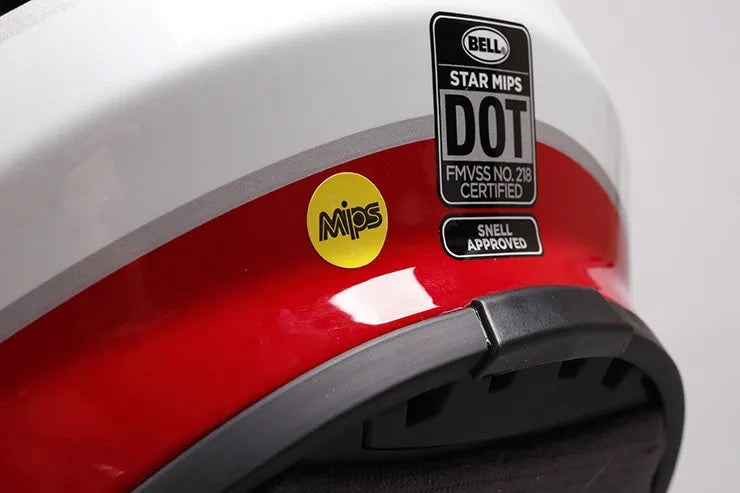

Which helmets have MIPS in?

The majority of motorcycle helmets for sale with MIPS in 2022 are designed for off-road, from 13 companies like AlpineStars, Fox and KTM. But there are road lids available, from the likes of Bell and Kabuto. Other manufacturers will be releasing lids in 2019, while discussions are ongoing with more brands for release further down the line.

In cycling, there are already 44 companies offering MIPS-equipped lids, including Bell, Giro and Smith. Snow sports are covered by 21 manufacturers like Oakley, Scott and Rossignol, while equestrian currently has two – Armis and Back on Track.

Does MIPS work and is it worth having?

Some reports have cast doubt over the advantages of MIPS, particularly in direct perpendicular impact testing, though others have found that – in an oblique impact more likely to represent a crash – MIPS-equipped cycle helmets do reduce the risk of brain trauma.

While some claim that the movement of the scalp limits the need for MIPS, or that similar results could be obtained with a slip-on external cover, what’s not disputed is that rotational forces should be minimised.

Like sports users who have to consider crashing, take a moment to question ‘what if’. And with that in mind, if there’s a system available that can reduce the risk of damaging the brain in an accident, what reason would you have for not using it?
